This is sort of a write-up on how to install a 1987-1991 Mazda 626 front lip onto the 1990-1991 Honda Prelude front bumper.

Tools needed:

- Drill gun
- Drill bit set
- Car jack (off course)
- Robinson or Phillips screw driver

Products Needed:

- 1 set of Mazda 626 Front Lip kit & 1 front left side of lip
- 13 12X3/4 stainless steel screws

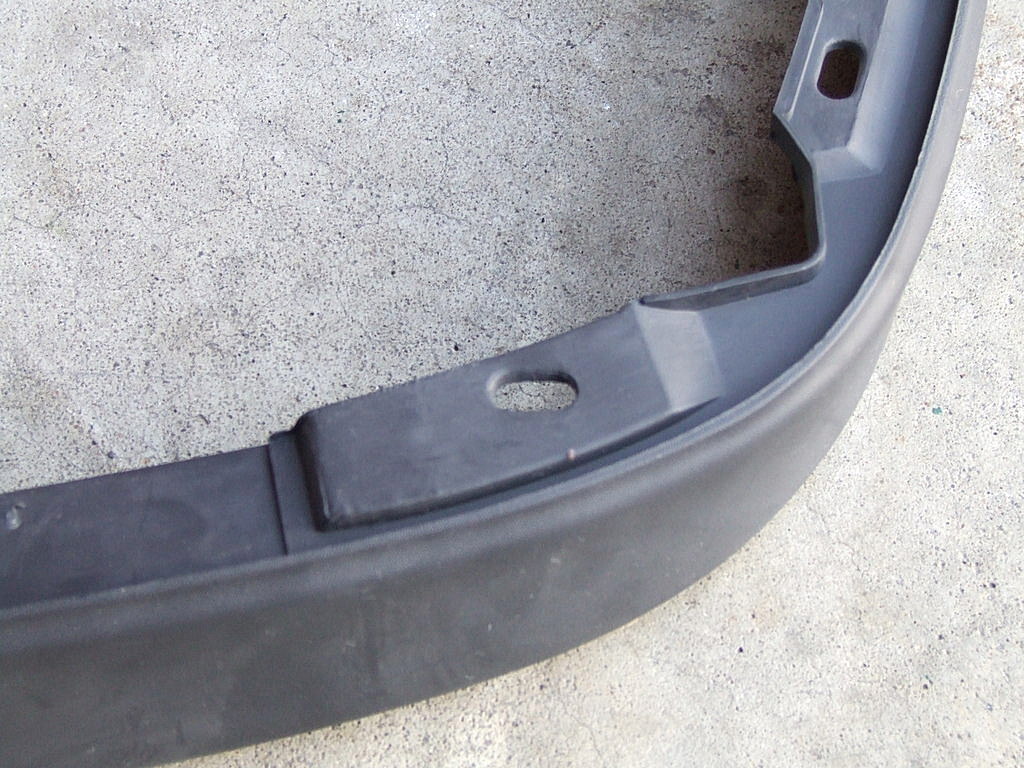

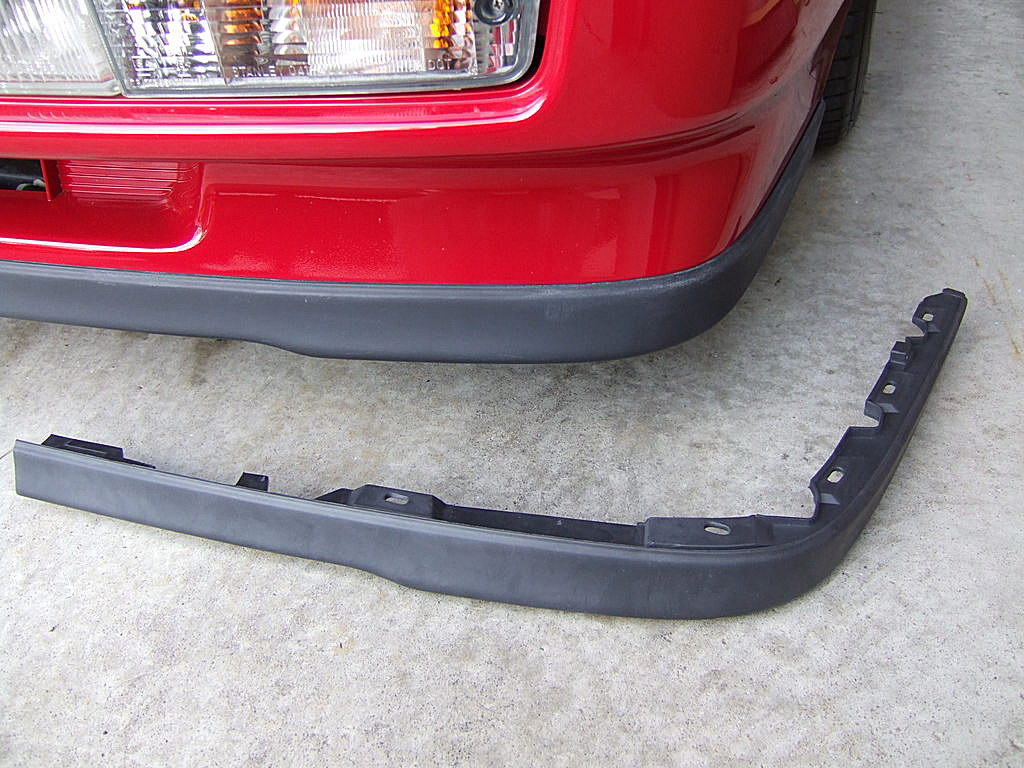

The Mazda 626 front lip when taken off looks like this on the side that attaches to the bumper.

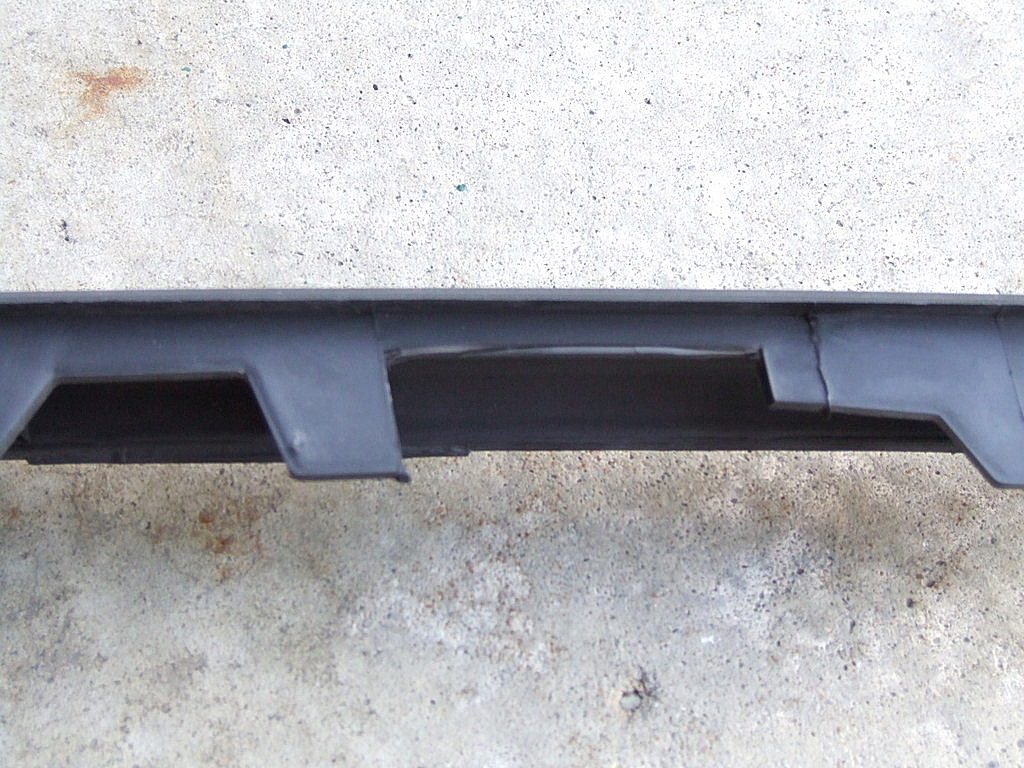

You will need to cut out the part of the lip that rises up or the lip will not sit flush with the bottom of the bumper.

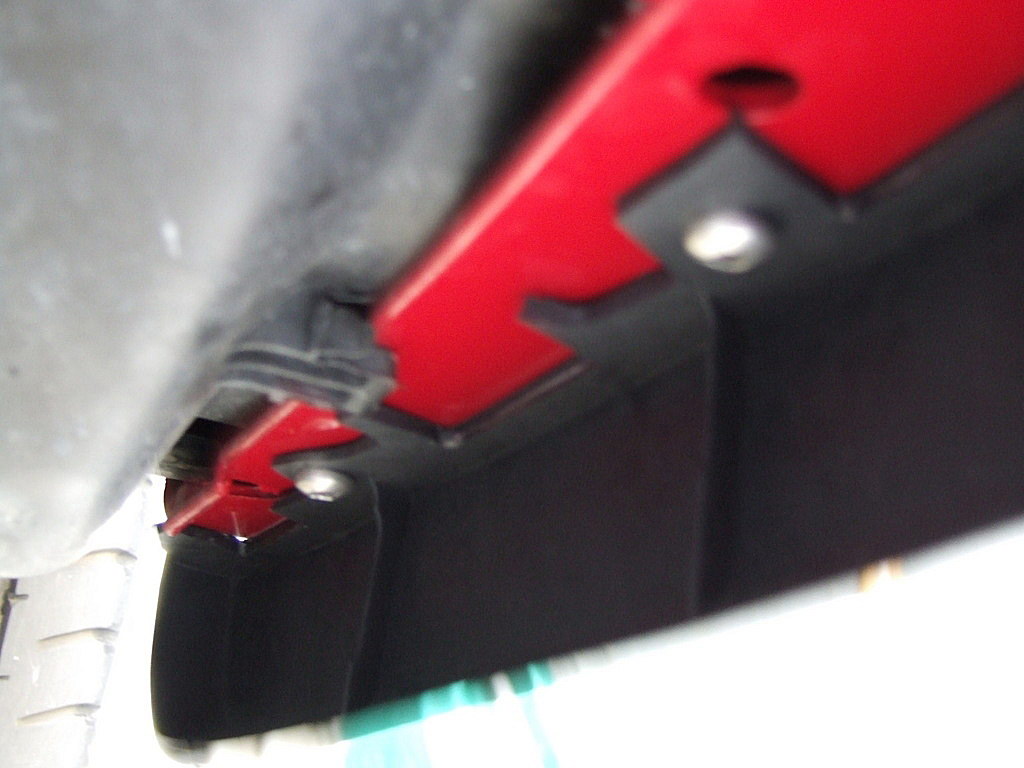

Drill holes into the lip using a 1/8 drill bit. Jack the car up and hold the lip to the bumper. Using those holes drilled into the lip, drill into bumper and put screw in. (Front of lip view, under car)

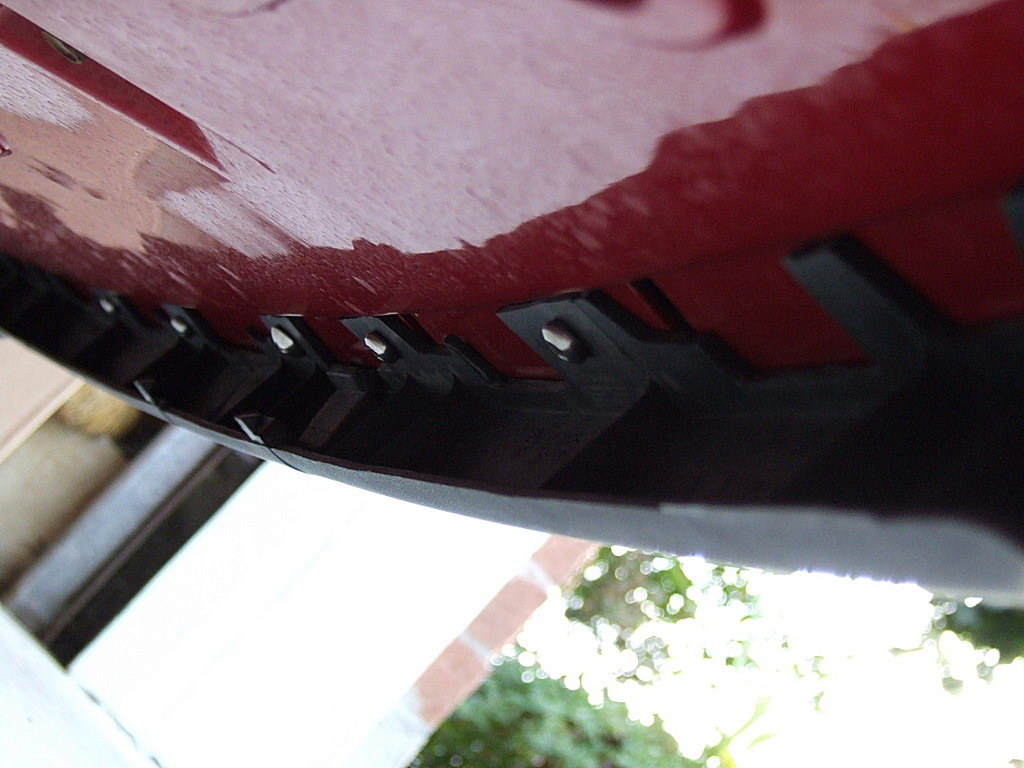

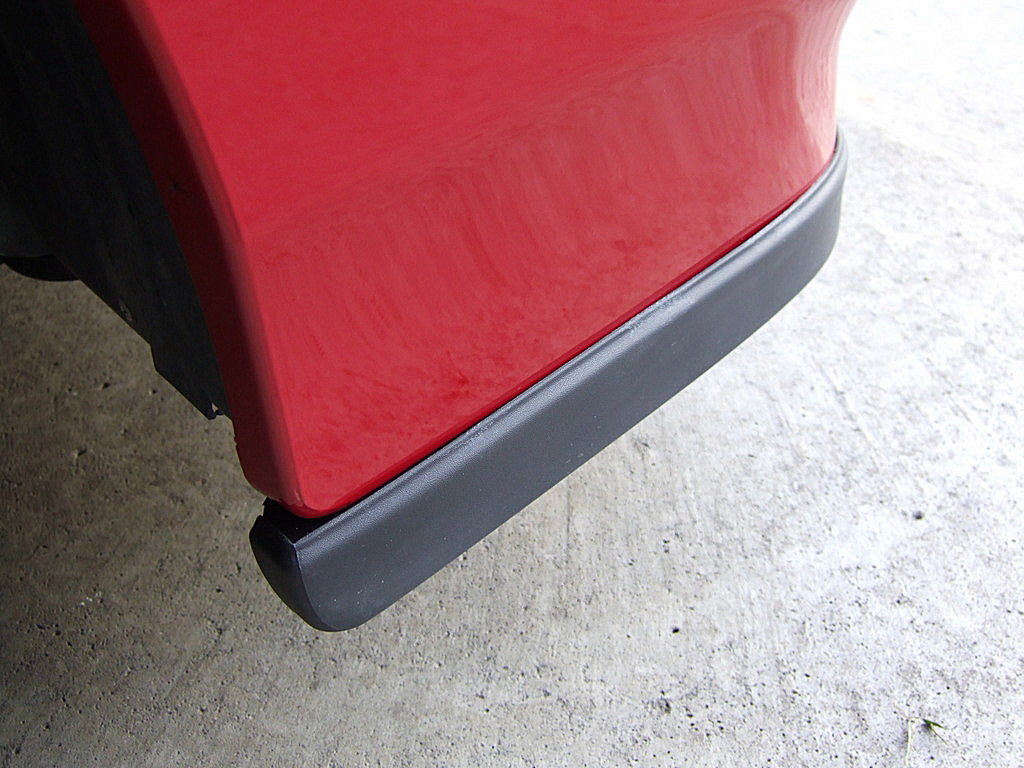

(Side of lip view, under car)

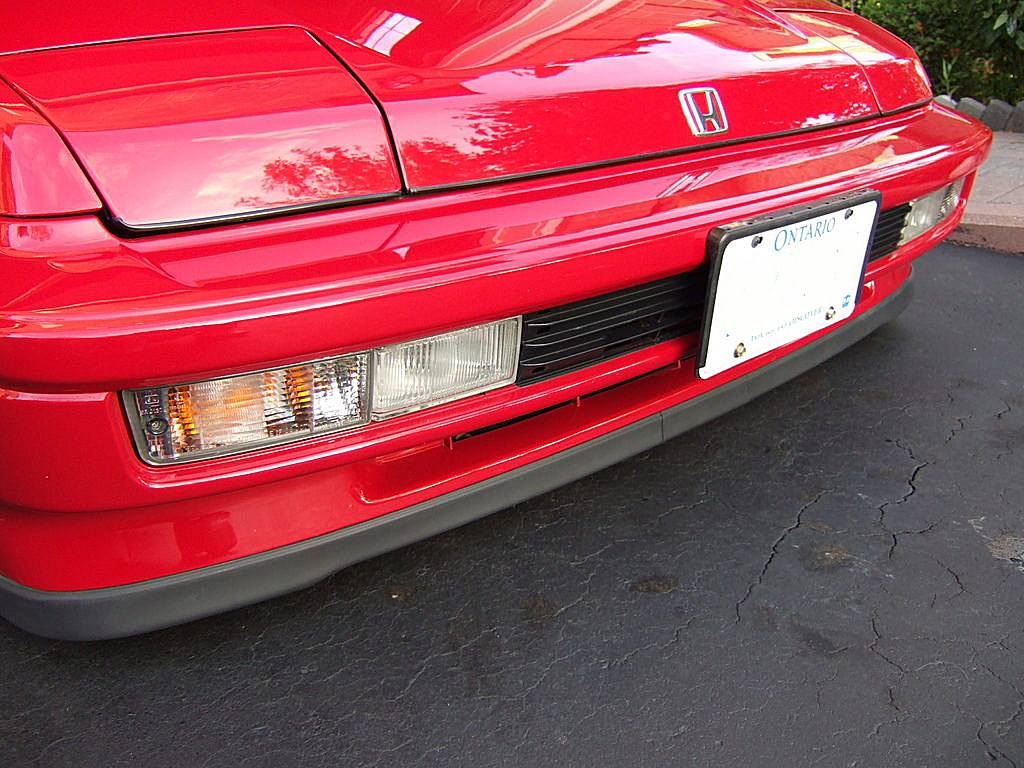

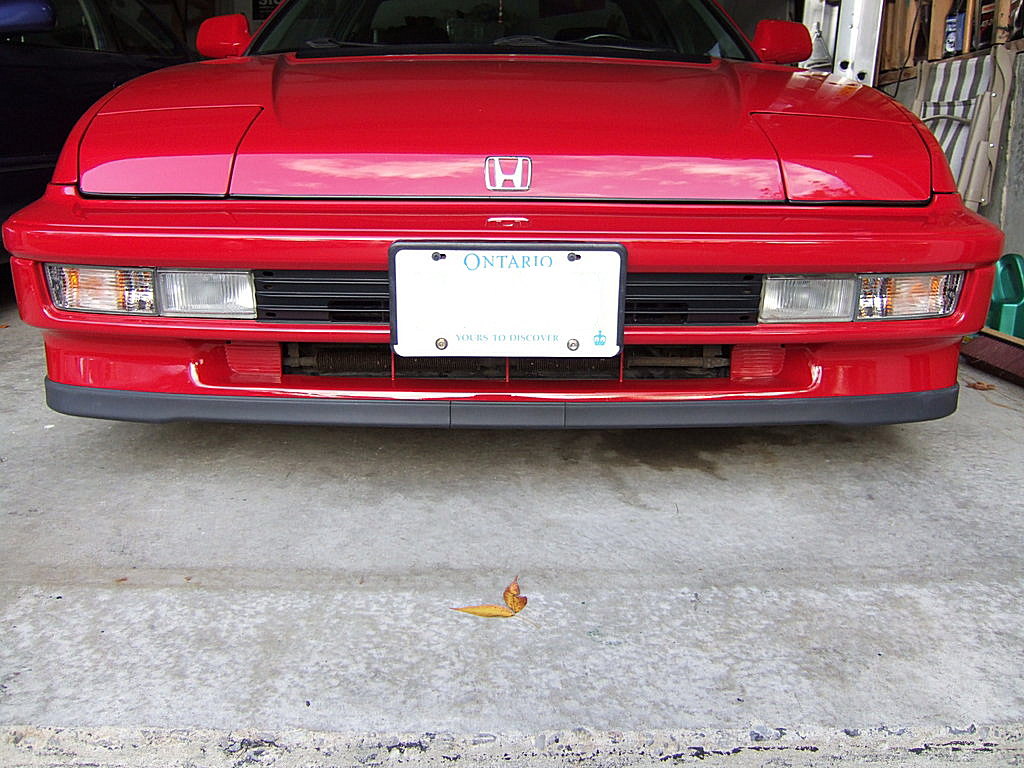

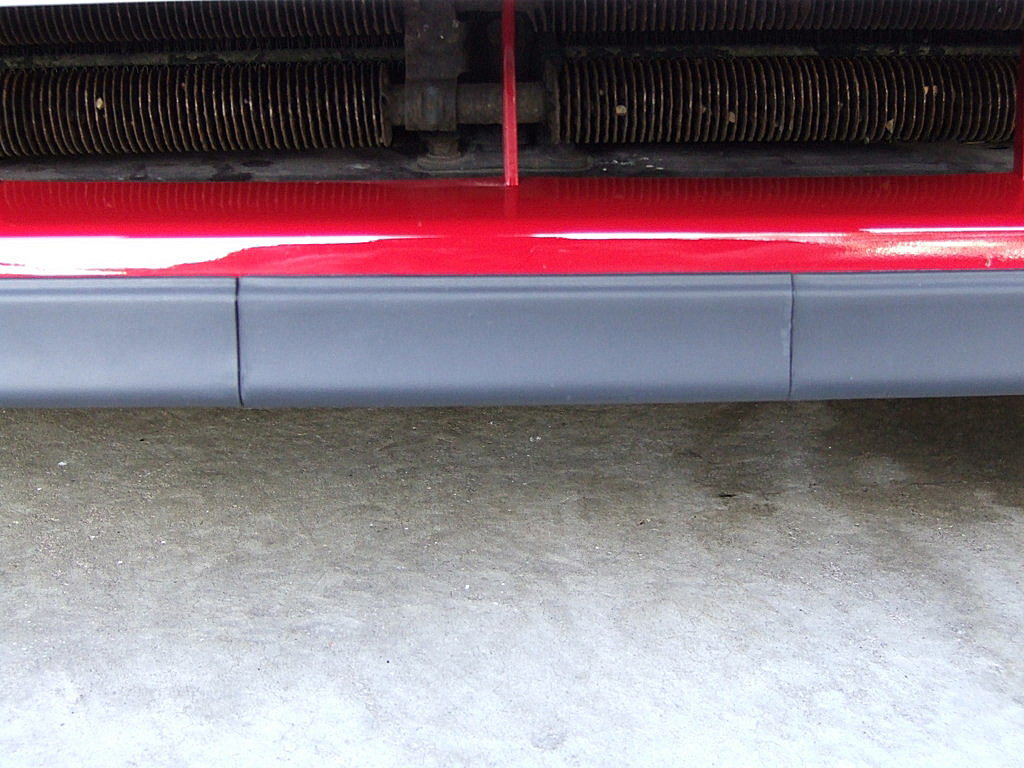

After both sides of the front lip is attached to the bumper you will have a gap in between, this is where the extra front lip comes in handy. Measure the gap in between and cut the lip to length. When finished, this is how the front lip should look like.

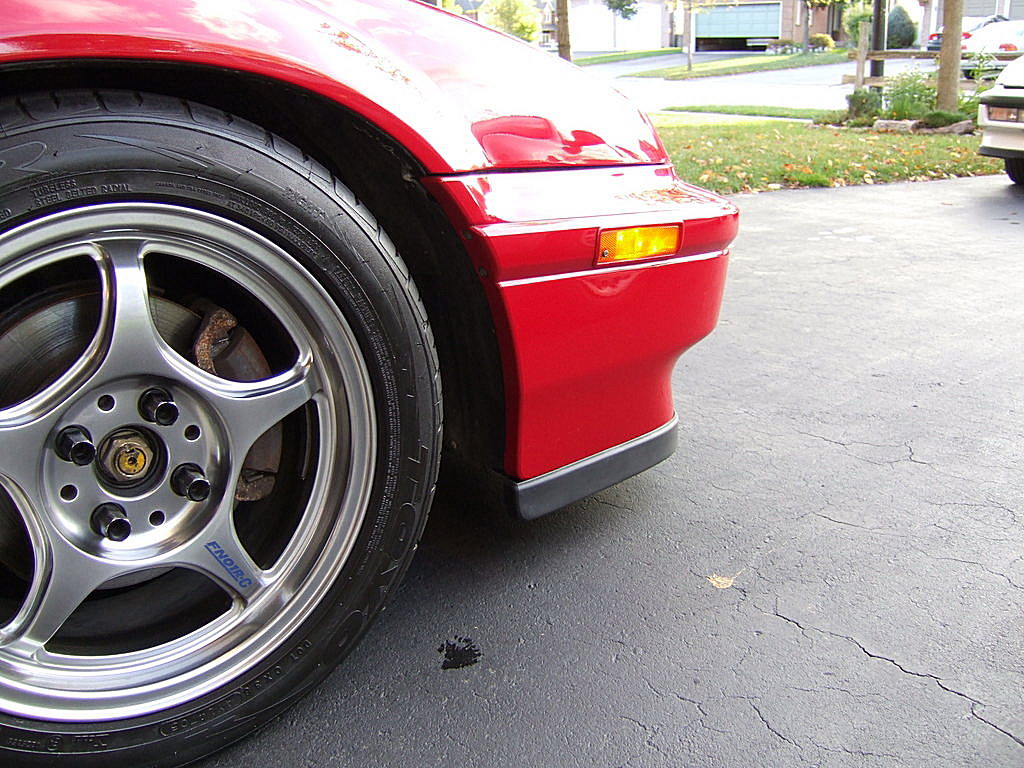

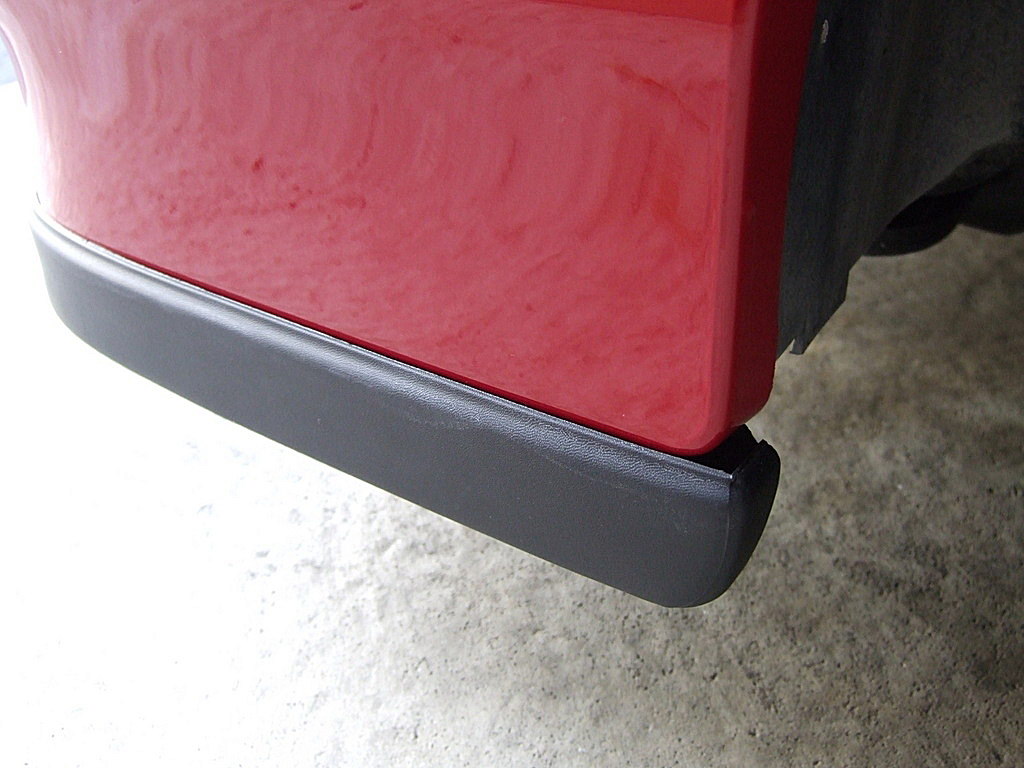

(Right side view)

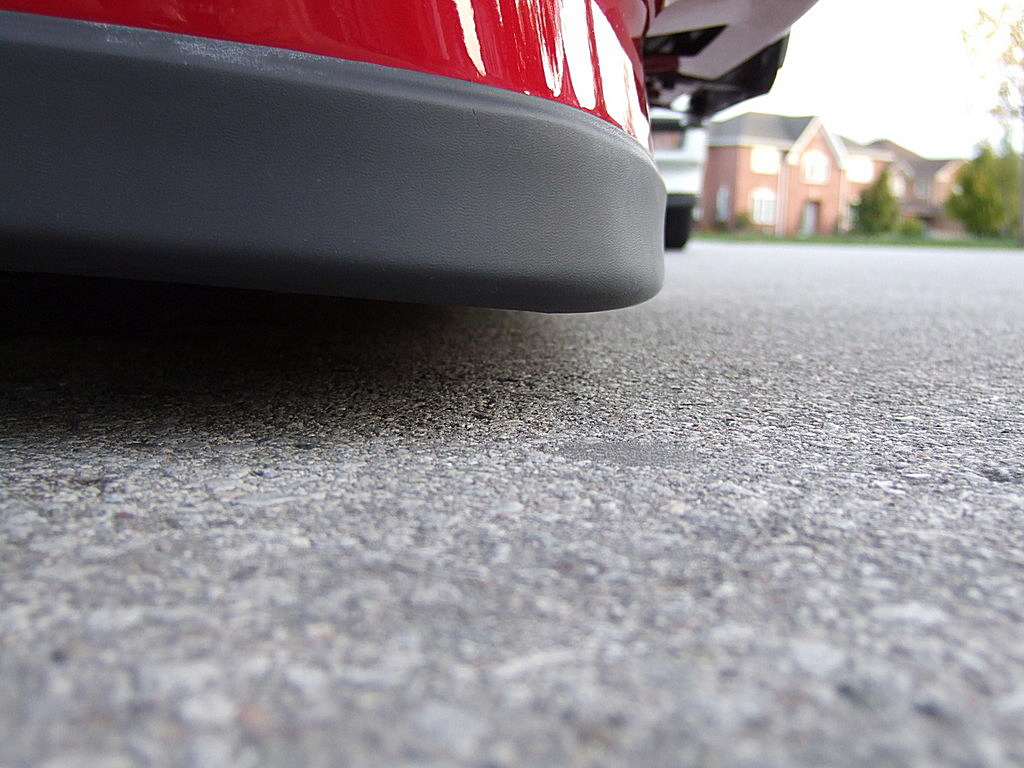

(Left side view)



I hope this write-up has been helpful and easy to understand. Thanks.

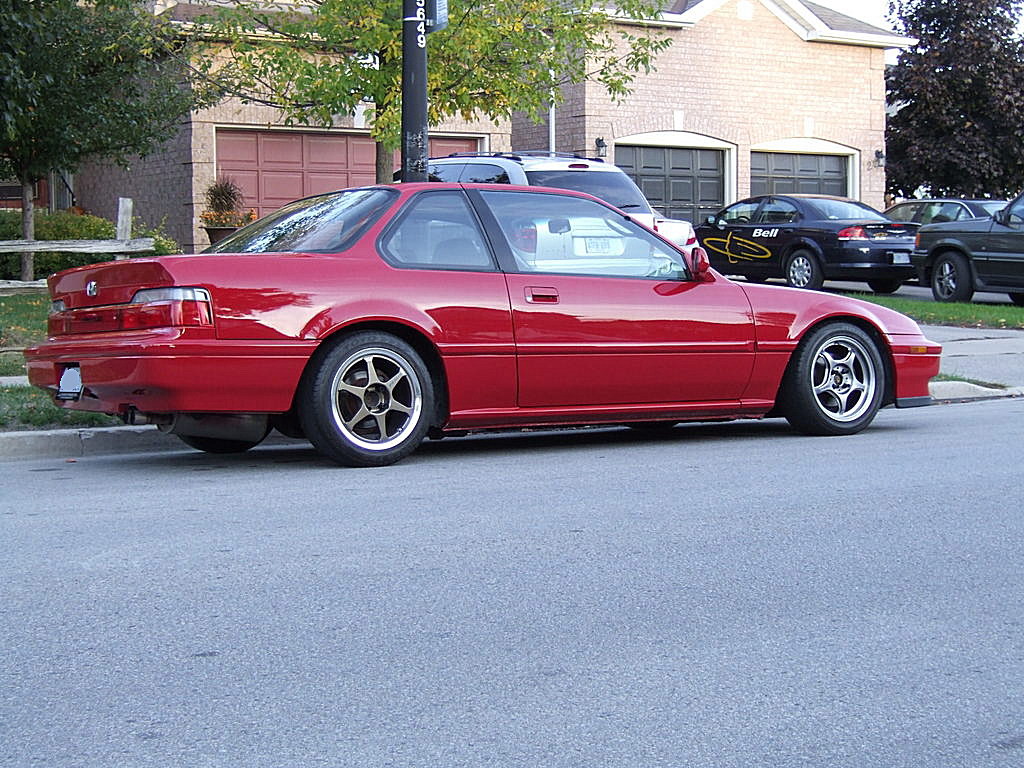

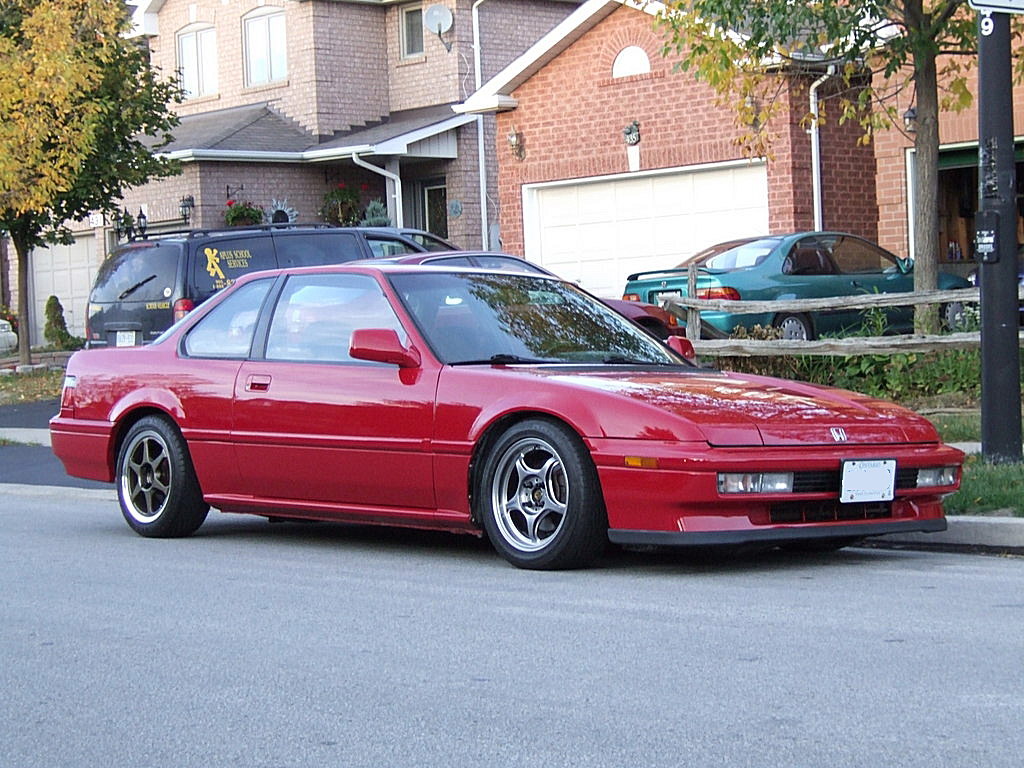

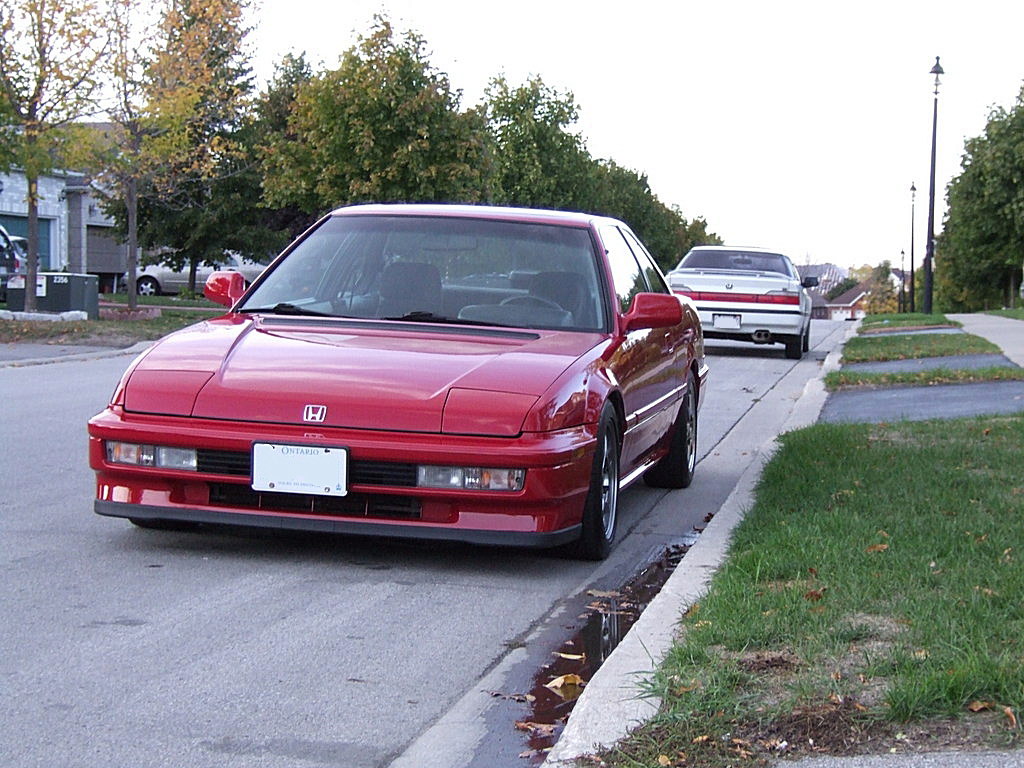

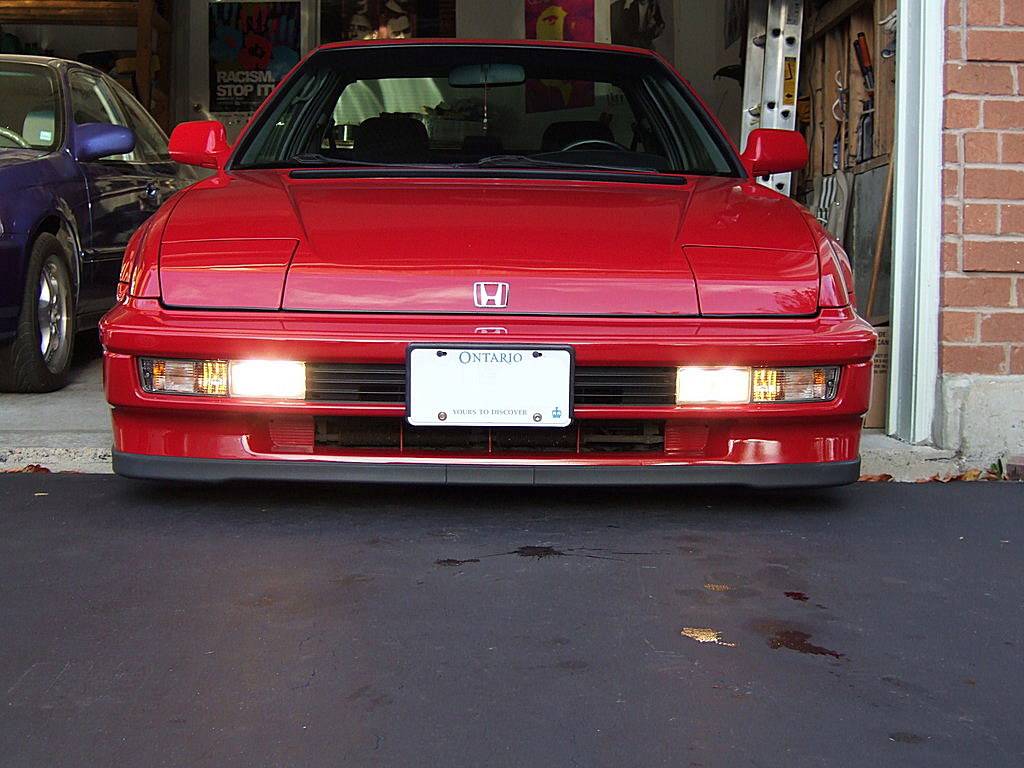

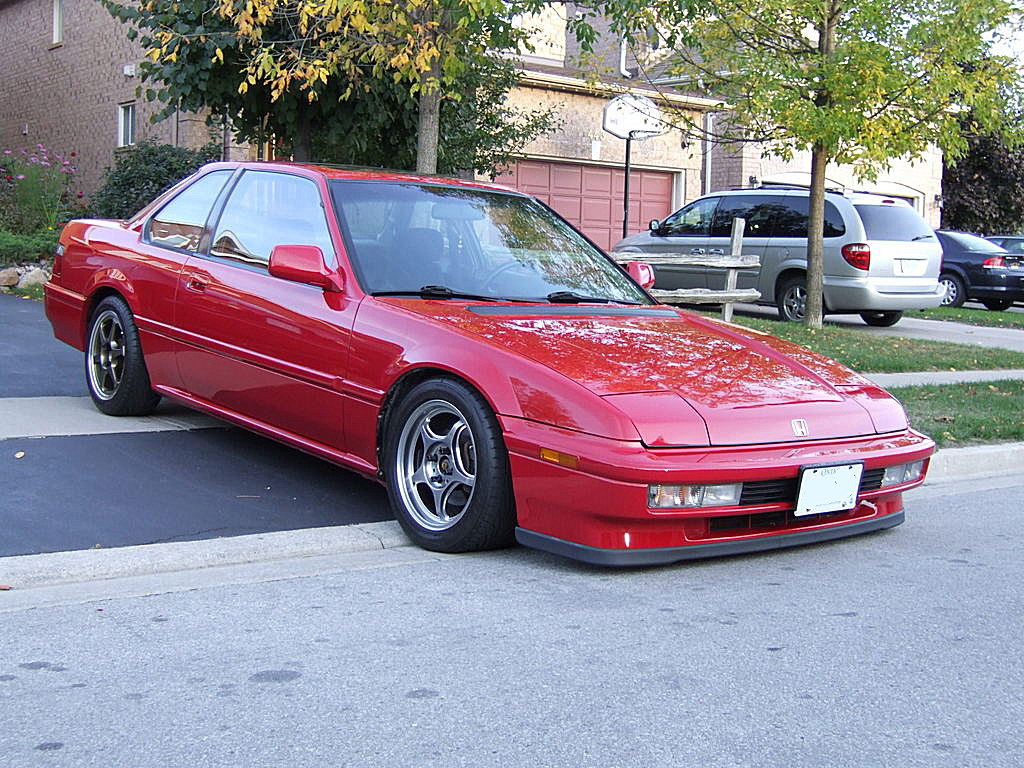

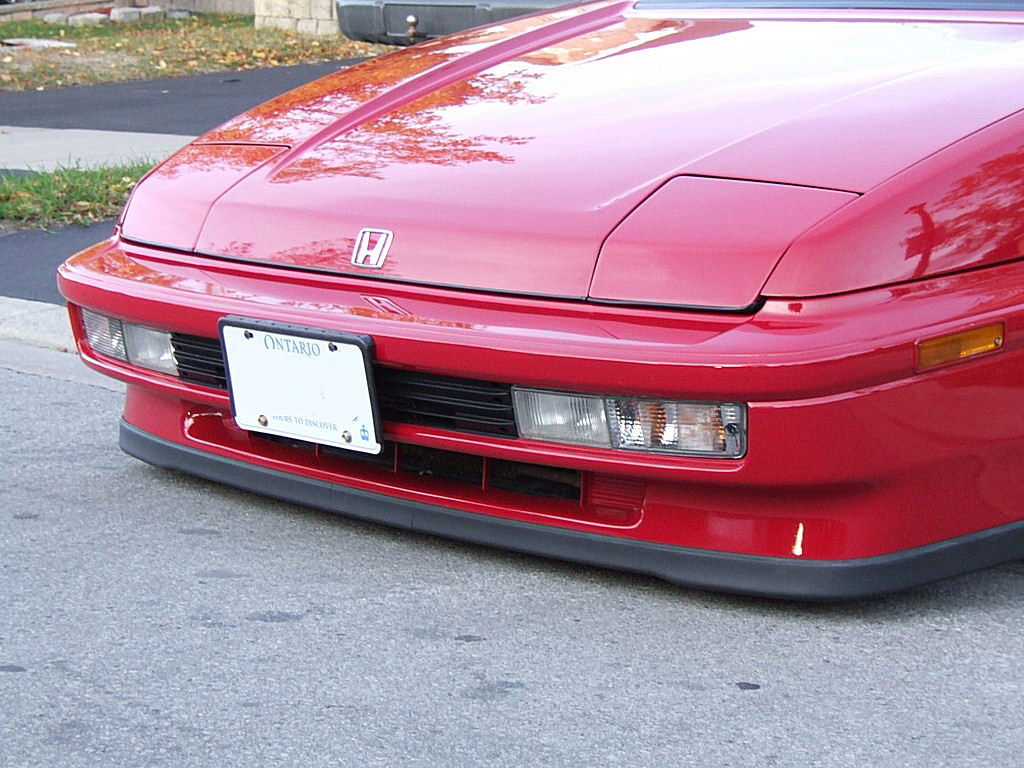

Just some more pics of the car.
