I began this project(^^) because my key holes won't work lol....
I was afraid, i might be locked out with my keys lol..
Well, here we go.
My targeted wires were
* 12v (battery Positive) in Ignition Harness - color (white) - this is thicker than others
* Power Lock wires behind driver kick panels green/white(lock) and green/red(unlock).
* A place for Ground (Battery Negative)
I could target more wires for "Horn" and "Parking Light flash" as options but to make it simple as possible i just did basic hook up for keyless entry.
1. Remove the coin box
2. Remove the plastic panel under the steering wheel by removing 5 screws (4 of them are in corners and 1 is where the coin box was, I almost broke it without see 1 more screw ^^)

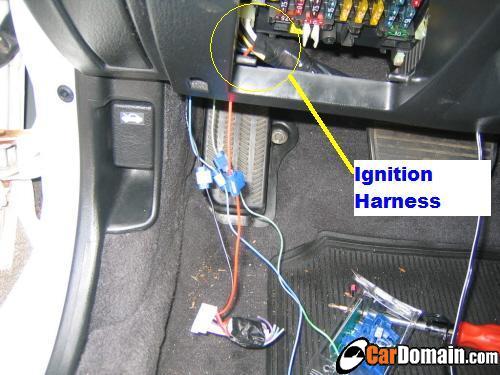

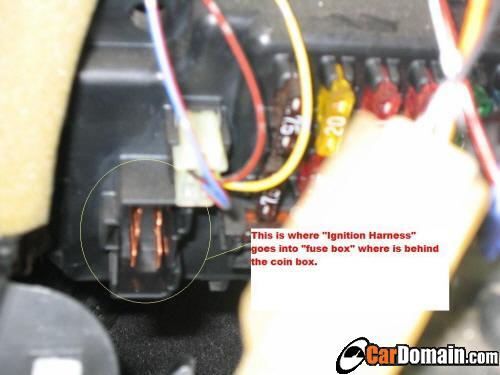

3. You will see bunch of wires down there . "ignition harness" is the wires that goes into fuse box (This pic is to tell the location of ignition harness)

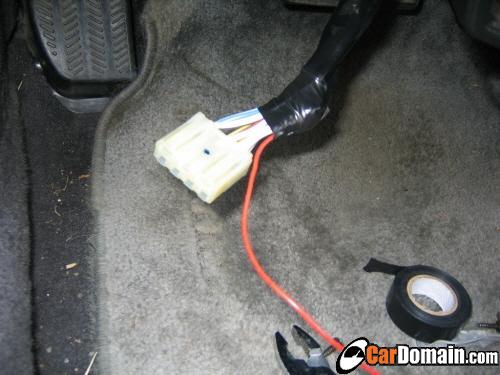

4. Disconnect the ignition harness

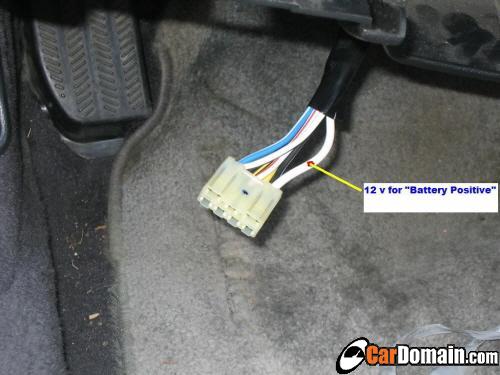

5. 12 v (battery Pos) is color "White"
6. Tap on it and connect it back to fuse box.
7. Remove driver kick panel by removing dead pedal first.

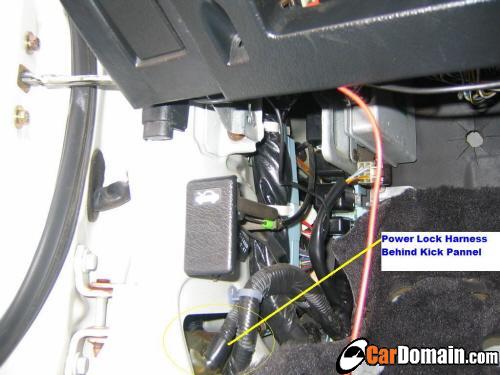

After removing panel you will see 2 wire groups going toward door. Power lock harness is in the smaller wire group.

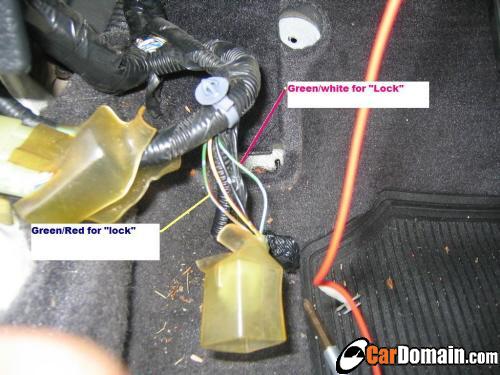

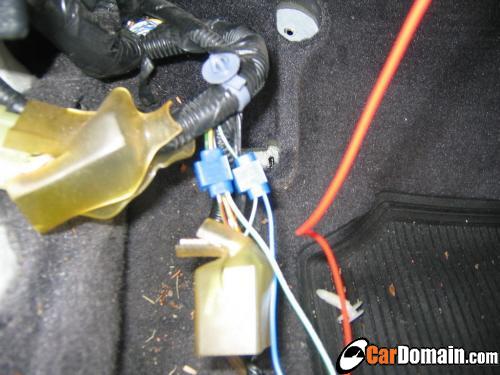

8. Disconnect it and spilt open the wire covers to expose 4 wires. Targeted wires are green/white (lock) and green/red (unlock). Tap on these wires:

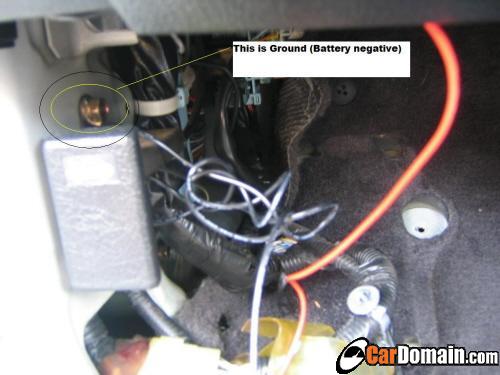

9. For ground (battery Negative) I picked a bolt right above hood latch:
10. Close kick panel and plastic cover and you are done. ( It would be good idea to connect it to keyless entry module/ or alarm to test if it works before you close up everything).

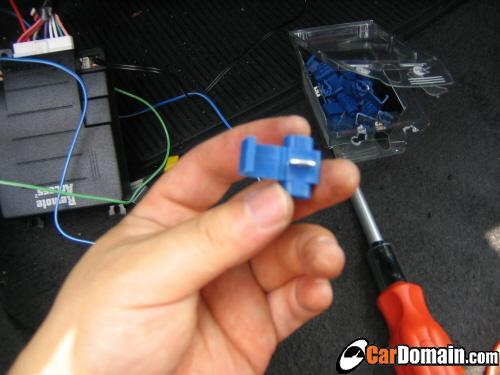

During the installation, I found this line connector very useful.
It took about 1hr and 30 min for me to do,(first time doing this kinda thing lol)
I hope this would help other luders..
