H22/H23/F SERIES SWAP
BACK TO PRELUDE3G.COM HOME



H-Series Swap Parts:
These are the major parts you need to buy for this swap aside from the engine/tranny. Be aware that the mounts, traction bar, and harness usually have a lead time and should be ordered first if possible.

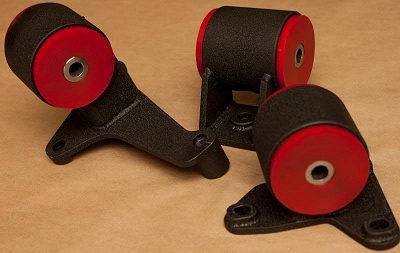

Mounts:

The mounts can be bought from 1funryd performance.
Get them at: http://www.1funryd.com/

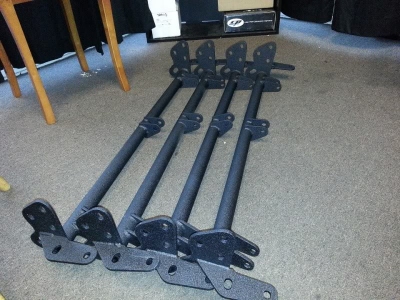

Traction Bar:

1funryd sells the traction bar:
Get it at: http://www.1funryd.com/



Harness:

Two options for the harness: Rywire or Wireworx. Rywire is around $700 shipped and Wireworx is around $550.

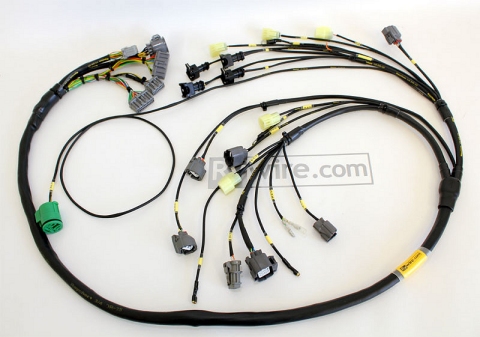

Get Rywire at: www.rywire.com

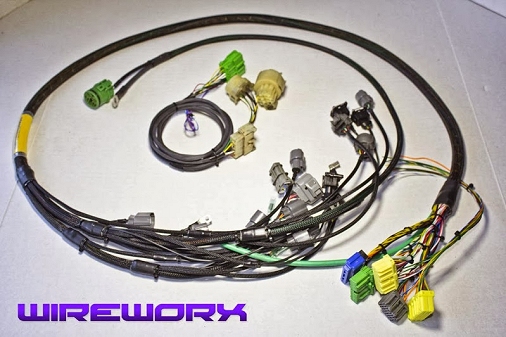

Get Wireworx at: http://www.1funryd.com/



Axles:

www.raxles.com
Contact Raxles to get some axles made for the swap.

If your looking for a cheaper alternative, 90-93 Accord M/T axles will work for this swap as long as you have the larger splined 90-91 lude hubs and use the Accord half-shaft. If you have an 88-89 you either need to swap hubs or get Raxles to make you some custom axles.

Ordered your swap with a M2B4 OEM LSD transmission? Then the passenger side Accord axle or regular Raxle will NOT work (too long). You will need to get a custom length one made by Raxles so make sure you tell them what you need!



Additional Parts
Other parts you will want to make sure you have.


Now to the actual write-up:

88-91 H22a Swap Instructions
